Roll Forming Gearbox Transmission C Purlin Machine With Multi Punching

C Purline machine with Multi-punching

Automatic C Purline machine with Multi-punching is designed to make the C purline machine in various sizes with many types of punching hole. In the market, there are many types C purline machine, like CZ purline machine, Z purline machine, either in the manual adjustment way or the fully automatic method. Here the machine I share we designed for France, Various type C purline with the Multi-punching, the size adjustment by button control and by PLC control both, no need the manual work.

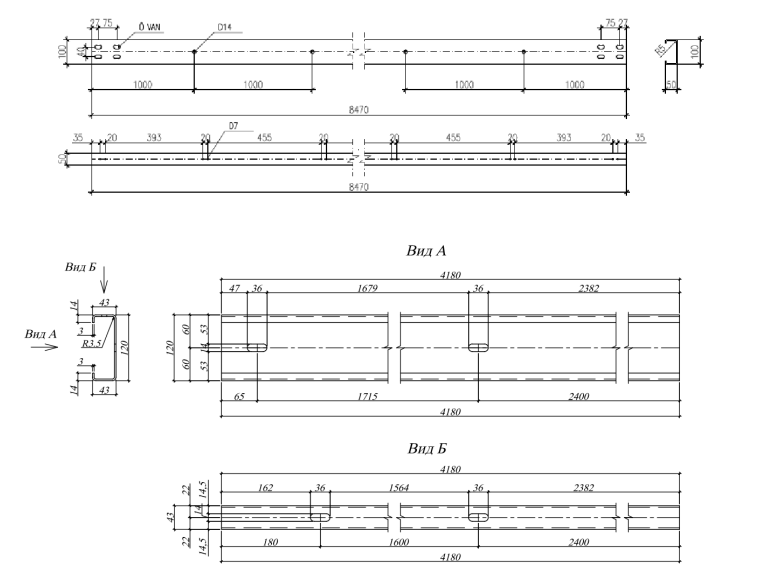

Take the following C purline drawing for your reference:

C Purline Finished Product:

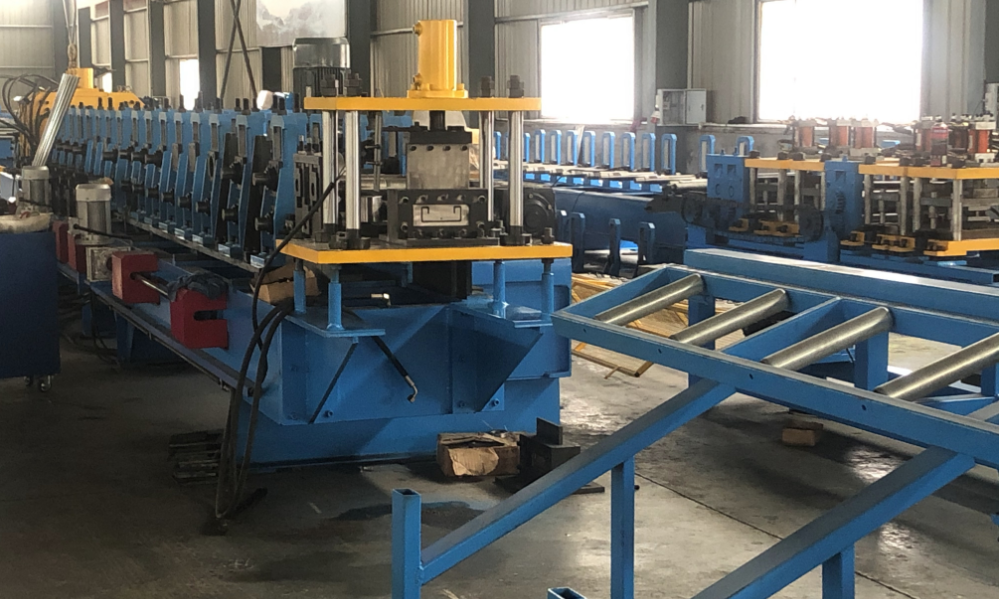

C Purline machine Design:

Features of C purling Machine:

1. Working speed is around 15 to 25 meter per minute.

2. Use the molding frame, the thickness of frame is around 35 to 45mm.

3. Use the gearbox as transmission.

4. Use the hydraulic shearing system.

5. Use the automatic stacker.

6. The punching are before punching.

7. The sizes are controlled by PLC or button control.

Here are more details about the C purline machine for your reference:

1. Use the gearbox as transmission:

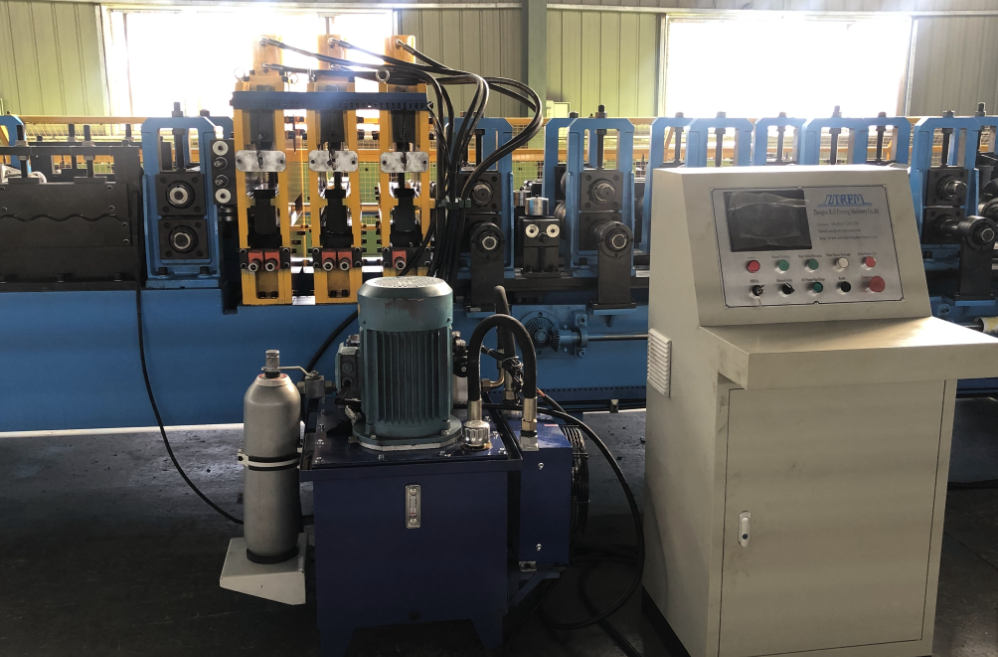

2. Punching station with the energy accumulator:

With this energy accumulator, the punching will not stop and then the punching speed could be doubled.

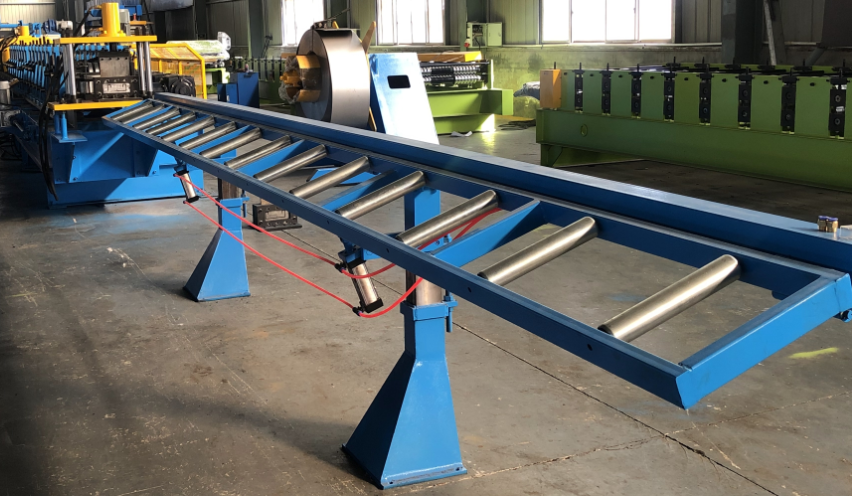

3. Automatic stacker will help receiving the C purline orderly.

For the C purline machine, CZ purline machine, if you need more types, please contact us at any time.
